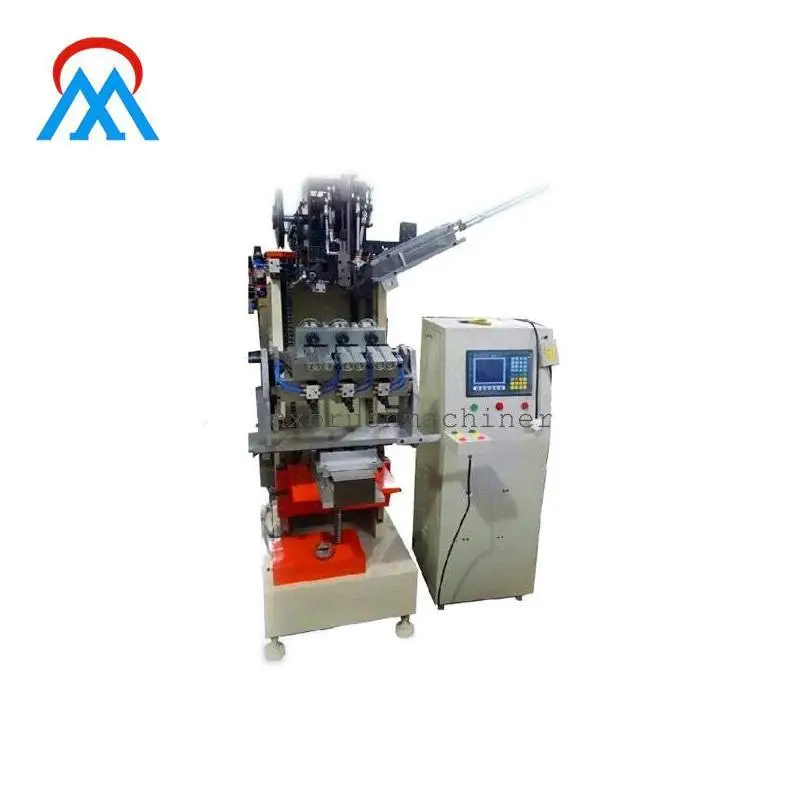

MX186 5 Axis Jade Brush Tufting Machine
A/ brand of motor in the machine
❶ Delta inverter, panasonic servo motor.
❷ Taiwan tbi ball screw guide way and taiwan hiwin.
❸ Schneider low voltage electrical appliances.
❹ Japan close with bearing.
❺ Germany senlima brake motor.
❻ Shenzhen atech controller.
PRODUCT PARAMETER
| Travel of X axis | 1000mm |
| Travel of Y axis | 300mm |
| The swing of Z axis | 360° |
| The swing of B axis | 120° |
| The height of Aaxis | 300MM |
| Voltage | 220v or 380v |
| Dia of holes | 5-8 holes/sec |
| Dia of fiber | 0.2 -1 mm |
| Fiber box | 2 colors |
| Filament outside holes | 15-30mm |
| Air pressure | 0.6 mpa |
| Machine power | 5.6kw |
| Qty of program save | Total: 2000pcs |
| Type of handle | Cylindrical shapen, with flat and curved surface |
| Productivity | 2500-3000 pcs / 10 hours |
| Material of filament | Pp, nylon, wire, stainless steel, wire, bristles. |
| Plc size | 5.7inch (Chinese & English) 50-60HZ |
| Data input for tufting | Teach-mode or digits type |
| Transactio n mothed | Exw, fob, cif, cfr |
| Payment details | 40% prepay by t/t, 60% pay by t/t before shipment. |
| Delivery time | Within 45 days after receive the deposit |
| Warranty | Controller is one year, others part of machine engineer available to send to there to repair the machines. |
| Spare parts | Tufting needles: 5 pcs, hair mouth: 3 sets, cutter: 2 sets, pulling knife: 2 pcs, alloy: 2 pcs. |
B/Controller features
C. Special features
1.
FMX fixture allows fast change over for a new brush tufted production. This machine with 3 grippers.
2.
Independent 5aix motion,suitable for any wooden or plastic brush handles tufting.
