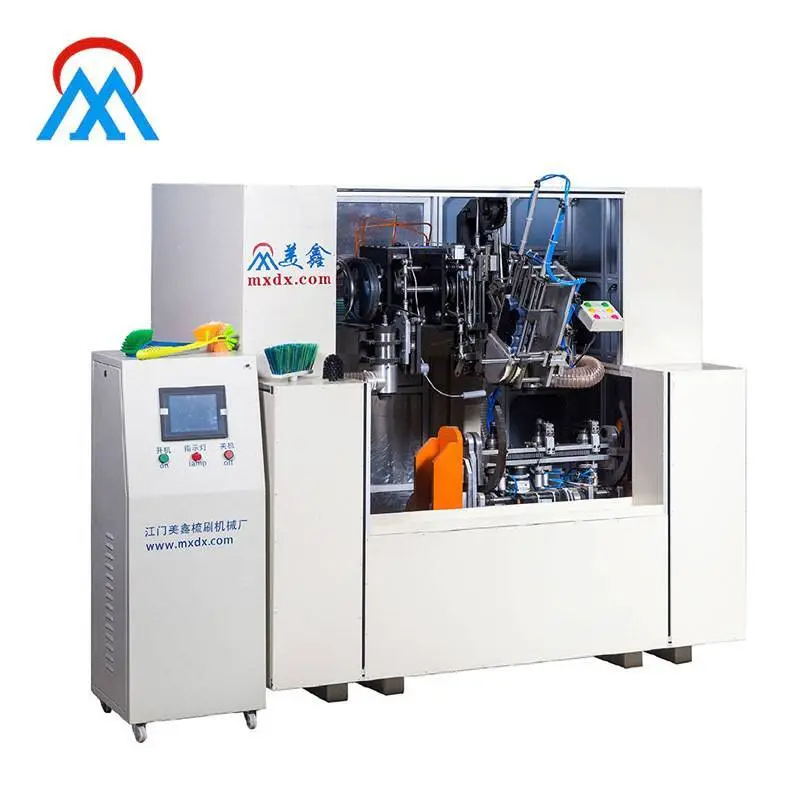

    Best quality 5 axis 3 heads 2 drilling and 1 tufting brush machine for toilet brush.

    A. Brand of motor in the machine



    ❶ Delta inverter, panasonic servo motor.

    ❷ Taiwan TBI ball screw guide way and Taiwan HIWIN.

    ❸ Schneider low voltage electrical appliances.

    ❹ Japan close with bearing.

    ❺ Germany SENLIMA brake motor.

    ❻ SHENZHEN ATECH controller.

    5 Axis Tufting Machine1 7

    PRODUCT PARAMETER

    Travel of X axis மிமீ1000
    Travel of Y axis மிமீ300
    The swing of Z axis
    360°
    The swing of B axis
    120°
    The height of Aaxis
    மிமீ300
    மின்னழுத்தம் 220v or 380v
    Dia of holes 5-7 holes/sec
    Dia of fiber 0.2 -1 mm
    Fiber box 2 colors
    Filament outside holes 50-120mm
    Type of handle Cylindrical shapen, with flat and curved surface
    தயாரிப்பு 3200-3500pcs/ 10 hours
    Material of filament Pp, nylon, wire, stainless steel, wire, bristles.
    Plc size 5.7inch (Chinese & English) 50-60HZ
    Data input for tufting Teach-mode or digits type
    Transactio n mothed Exw, fob, cif, cfr
    Payment details 40% prepay by t/t, 60% pay by t/t before shipment.
    விநியோக நேரம் Within 45 days after receive the deposit
    உத்தரவாதம் Controller is one year, others part of machine engineer available to send to there to repair the machines.
    Spare parts Tufting needles: 5 pcs, hair mouth: 3 sets, cutter: 2 sets, pulling knife: 2 pcs, alloy: 2 pcs.

    B. CONTROLLER FEATURES

    undefined
    It's provided with manual data input as well as teach in data input method.
    undefined
    Auto or step operation.
    undefined
    Speed of tufting is controlled by inverter for various speed adjustment.
    undefined
    Test mode to test machine if functions properly.
    undefined
    Editing features of , delete or copy.
    undefined
    Normal working or positioning testing.
    undefined
    Drilling and tufting excessive pressure alarm.
    undefined
    Production speed is adjustable.

    C. Special features

    1.

    FMX fixture allows fast change over for a new brush tufted production. This machine with 3 grippers.

    2.

    Independent 5aix motion,suitable for any wooden or plastic brush handles tufting.
